The mission changes – so does BOXER

Cargo

ARTEC-BOXER-Cargo-Vehicles-01
mouseUp
ARTEC-BOXER-Cargo-Vehicles-01
Safe and flexible handling of the payload

Cargo

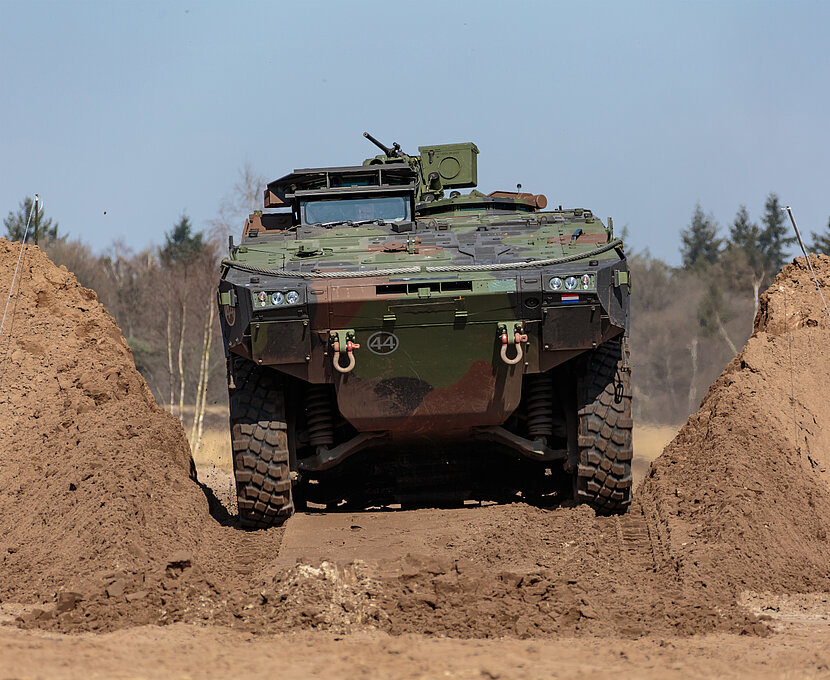

Adequate and timely re-supply is essential for a successful mission. BOXER Cargo variant is designed to transport and distribute two standard one tonne army pallets under armour to supply even exposed units on the battlefield.

ARTEC-BOXER-Cargo-Vehicles-04
ARTEC-BOXER-Cargo-Vehicles-02
ARTEC-BOXER-Cargo-Vehicles-03
Full protection for the logistic crew against battlefield threats

High mobility and an outstanding level of protection are the key enablers in supply missions to reconnaissance and combat forces

It is equipped with an innovative easy-to-use cargo system for safe and flexible handling of the payload. The Mission Module can be rapidly adapted to different mission scenarios. Racks, seats and shelves can be removed, added or rearranged to achieve the best setup for the mission purpose.

High mobility, even on heavy terrain, and an outstanding level of protection are the key enablers in supply missions to reconnaissance and combat forces. Full protection is provided to the logistic crew against battlefield threats. To achieve optimum performance during operational missions, BOXER Cargo can optionally support its two man crew with the latest generation situational awareness and other C4I assets for example battle management systems. Remote controlled weapon stations, additional ballistic protection or active protection systems are also available as options.

In addition to high flexibility and mobility, the combat proven BOXER Cargo provides its crew with extraordinary survivability and superior protection against mines (AT, AP), IEDs, highest ballistic threats (incl. artillery fragments), NBC threats and detection (radar, noise, solar loading).

Product data of Cargo

Key figures

Maximum speed> 100 km/h
Engine capacity (ISO)up to 600 kW (816 hp)
Engine typeMTU V8 199TE20/21
Range> 1,000 km
Electrical system24V DC, up to 540A
Max. gross vehicle weightup to 38.5 t
Max. straight gradient60 %
Max. slope gradient30 %
Trench crossing2.00 m
Step climbing ability0.80 m
Turning radius7.50 m (skid steering)
Length7.93 m
Width2.99 m
Height (hull roof)2.38 m
Ground clearance0.50 m
Protected volume14 m3

Characteristics

Crew: 3 (driver, commander, gunner)
Capacity: 2 x 1 t army cargo pallet
Flexible Cargo Floor System
Fire extinguishing system in engine compartment and fire suppression system in crew compartment
Air conditioning and NBC-protection system
Rear view camera

Exemplary Options

Remote Controlled Weapon Station with Smoke-Grenade Launcher
Modular protection kits (ballistic, bomblets, IEDs, mine)
Active Protection System
360° Situational Awareness System
Electronic Countermeasure (ECM) / Jammer
