One of the most modern wheeled Infantry Fighting Vehicle

Infantry Fighting Vehicle RCT 30

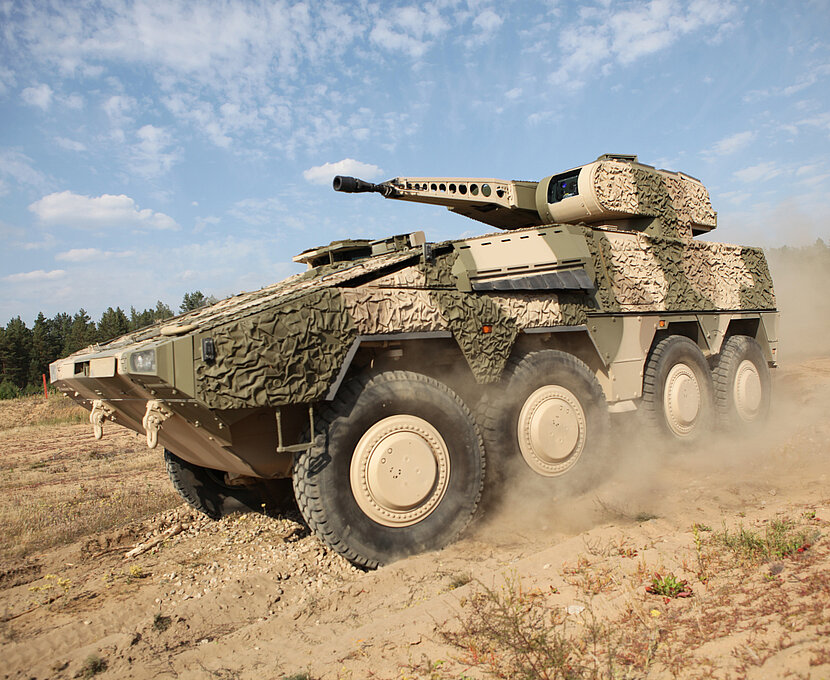

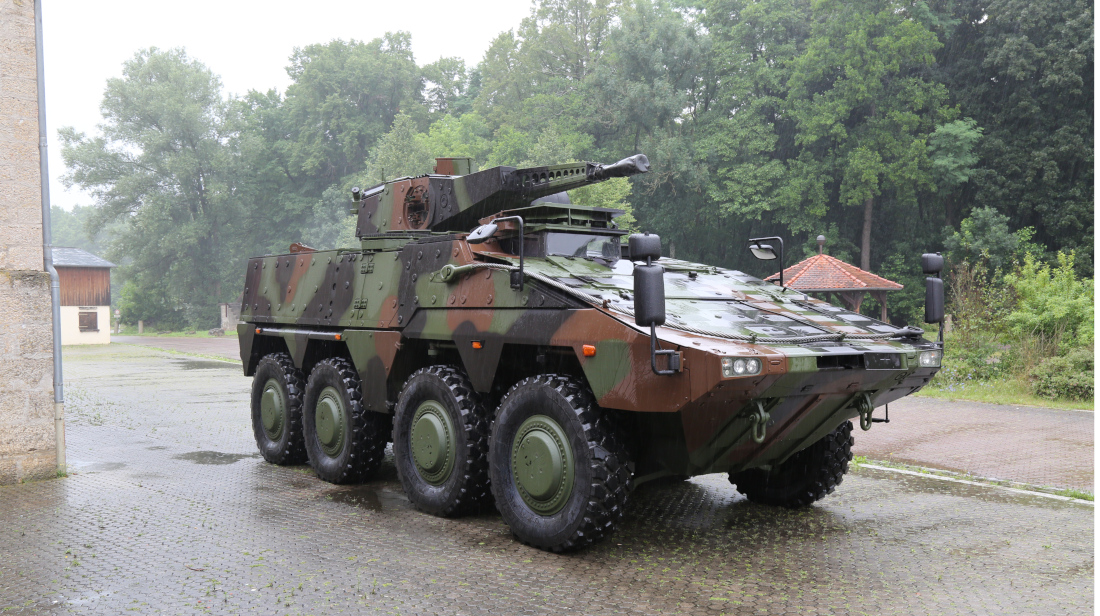

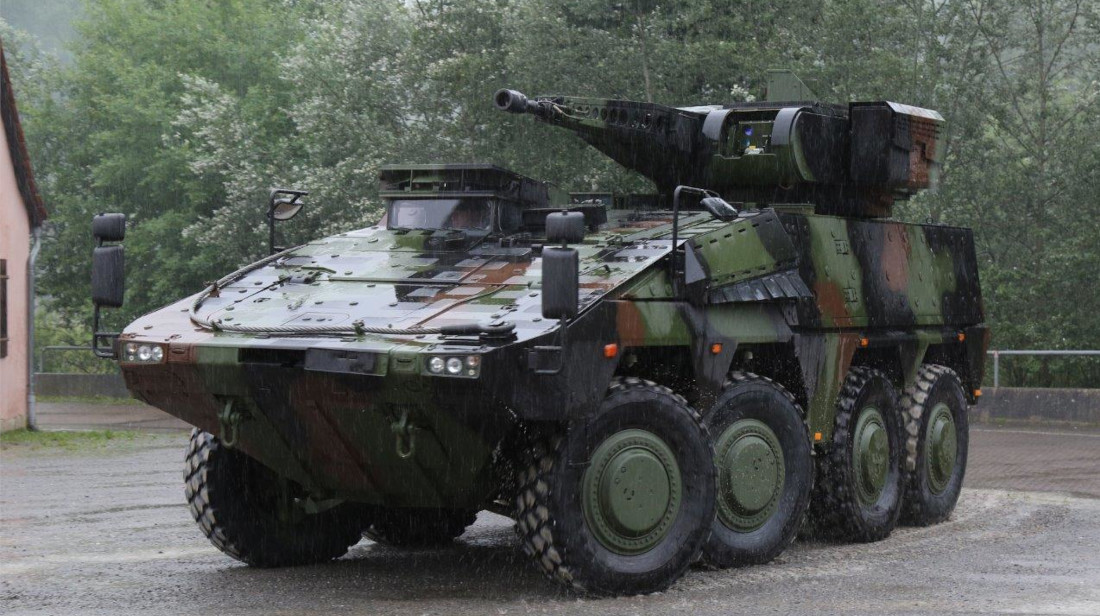

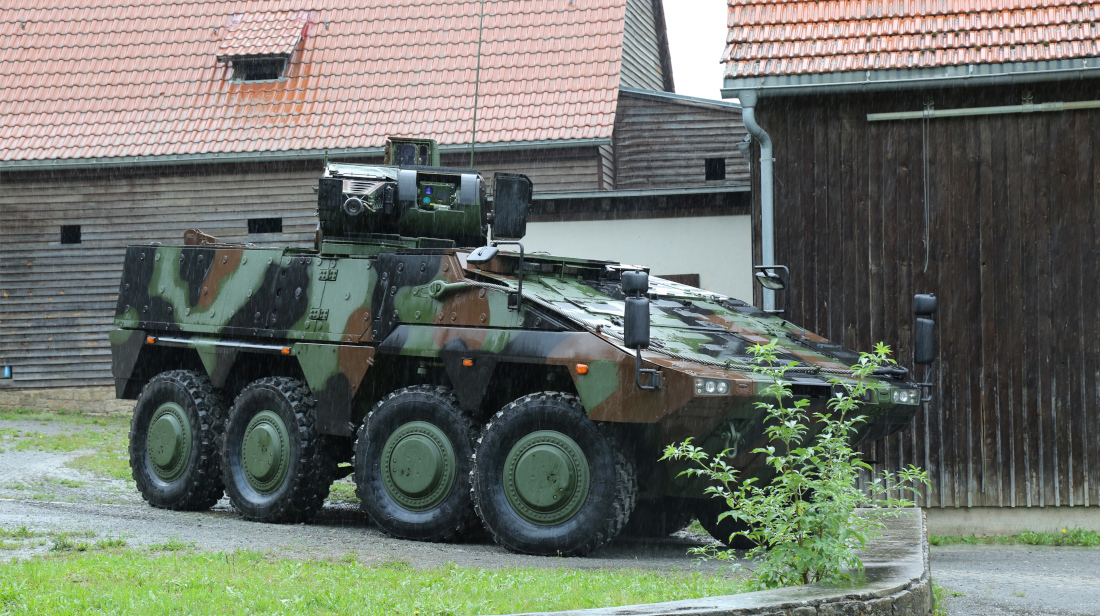

The Infantry Fighting Vehicle (IFV) variant of BOXER with the remote controlled turret RCT30 represents one of the most modern wheeled IFVs. Excellent firepower and high mobility are essential to asserting oneself in high-intensity conflicts and offers the possibility for escalation and de-escalation in all other deployment scenarios. In BOXER RCT30, this capability is achieved by the firepower of the turret as being operated by the German Army in the tracked IFV PUMA in combination with the high mobility and the high protection level of the BOXER.

Download Brochure
ARTEC-BOXER-RCT-30-02
ARTEC-BOXER-RCT-30-03
ARTEC-BOXER-RCT-30-04
ARTEC-BOXER-RCT-30-05
ARTEC-BOXER-RCT-30-06
ARTEC-BOXER-RCT-30-07
ARTEC-BOXER-RCT-30-08
Proven quality combined

Protection, performance, firepower based on the German tracked PUMA

The fully-stabilised, state-of-the-art remote-controlled turret with cutting-edge optical and optronic visibility allows the entire crew for 360° all-round observation, detection and identification of long range targets. The stabilised 30mm machine cannon allows for accurate engagement of moving targets, even when driving. Two different ammunition types in the turret provide for a mission-based decision on the appropriate round at the push of a button. With the latest C4I architecture, BOXER RCT30 can be fully integrated into the existing battlefield management system and allows for the updating of navigation and tactical information from infantry soldiers with various interface functions for a networked command.

The modular design of BOXER allows for flexible adaptation to future military tasks or changing requirements, due to its uniform Drive Module and a large number of specific, rapidly interchangeable Mission Modules.

In addition to its underlying performance, BOXER RCT30 provides its crew with extraordinary survivability and protection against mines (AT, AP), IEDs, corresponding ballistic threats (incl. artillery fragments), NBC threats and detection (radar, noise, solar loading) in addition to its superior firepower.

Product data of Infantry Fighting Vehicle RCT 30

Key figures

Maximum speed> 100 km/h
Engine capacity (ISO)up to 600 kW (816 hp)
Engine typeMTU V8 199TE20/21
Range> 1,000 km
Electrical system24 V DC, up to 540 A
Max. gross vehicle weightup to 38.5 t
Max. straight gradient60 %
Max. slope gradient30 %
Trench crossing2.00 m
Step climbing ability0.80 m
Turning radius7.50 m (skid steering)
Length7.93 m
Width2.99 m
Height (turret roof)3.51 m
Ground clearance0.50 m
Protected volume14 m3

Characteristics

Crew3 + 7 (driver, commander, gunner, up to 7 dismounts)
Main armamentStabilized MK30-2/ABM (Air Burst Munition)
Elevation-10° up to +45°
Azimuthn x 360°
Max. effective range up to 3,000 m
Rate of fireup to 200 rounds per minute
Ammunition30 mm x 173 mm (dual feed automatic)
Secondary armament7.62 mm x 51 mm MG5 coaxial machine gun
Anti-Tank Guided Missile Launcher SPIKE LR
Air conditioning and NBC-protection systems
Fire extinguishing system in engine compartment and fire suppression system in crew compartment

Exemplary Options

Modular protection kits (ballistic, bomblets, IEDs, mine, RPG)
Active Protection System
360° Situational Awareness System
Electronic Countermeasure (ECM)
Automatic Target Recognition and Target Tracking
Laser Warning System
Additional Remote Controlled Weapon Station
Multispectral Drivers Assistance System for day and night
