Command Post

The mission´s brain

Modern military forces are facing increasingly complex battlefields often paired with the requirement of multinational interoperability. The skill to react quickly to the rapidly changing threats and developments on the battlefield are a prerequisite for the successful accomplishment of today’s challenging military missions.

Download Brochure

The digital backbone for standardised and Generic Vehicle Architecture (GVA)

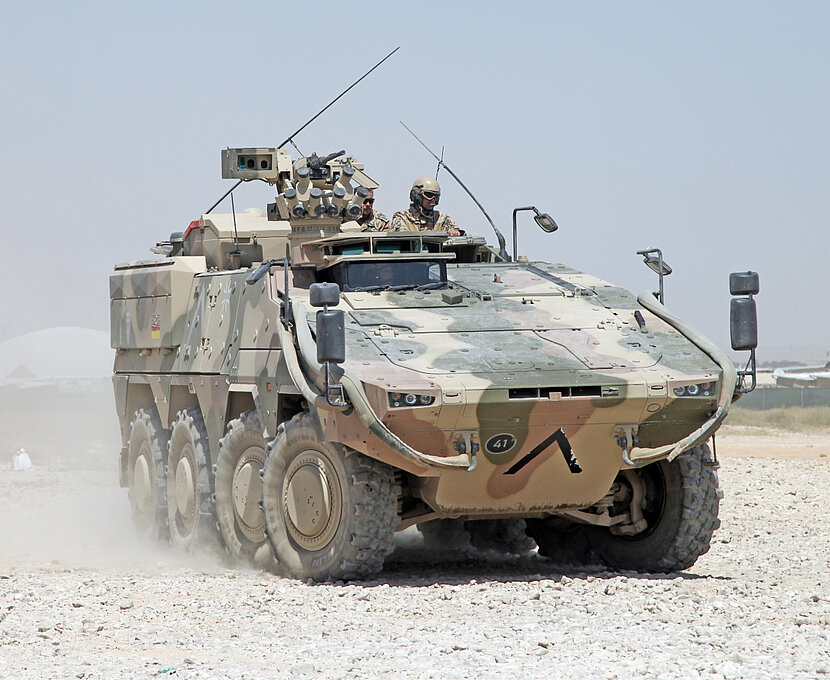

BOXER Command Post (CP) offers a heavily protected, highly mobile and fully equipped Command Post capability throughout the full line of command from company to brigade level.

BOXER CP offers the ability to integrate a customer defined C4I environment (HF, VHF and UHF radio suite plus broadband Satcom communication) enabling the crew to successfully cope with today’s complex battlefield scenarios. The systems can be operated on the move or in static operation, connecting multiple BOXER CP vehicles back-to-back.

This variant has the digital backbone for standardised and Generic Vehicle Architecture (GVA), allowing for easy integration of communication systems, radios, battle management systems and other equipment. A wide range of onboard radio transmitters can be installed and ensure as above secure communication and data exchange.

Flexible seating arrangements, racks and shelves allow for customisation of BOXER CP to suit specific operational requirements that can be changed quickly and with no tools necessary.

Different versions of this variant are available, meeting customer specific requirements and BMS architectures as well as ergonomic aspects.

Maximum speed	> 100 km/h
Engine capacity (ISO)	up to 600 kW (816 hp)
Engine type	MTU V8 199TE20/21
Range	> 1,000 km
Electrical system	24 V DC, up to 540 A
Max. gross vehicle weight	up to 38.5 t
Max. straight gradient	60 %
Max. slope gradient	30 %
Trench crossing	2.00m
Step climbing ability	0.80 m
Turning radius	7.50 m (skid steering)
Length	7.93 m
Width	2.99 m
Height (hull roof)	2.38 m
Ground clearance	0.50 m
Protected volume	14 m³

The mission changes – so does BOXER

Flexible seating arrangements, racks and shelves allow for customization of BOXER Command Post

Product data of Command Post

Key figures

Characteristics

Exemplary Options
