Highest level of mobility and protection

Armoured Personnel Carrier

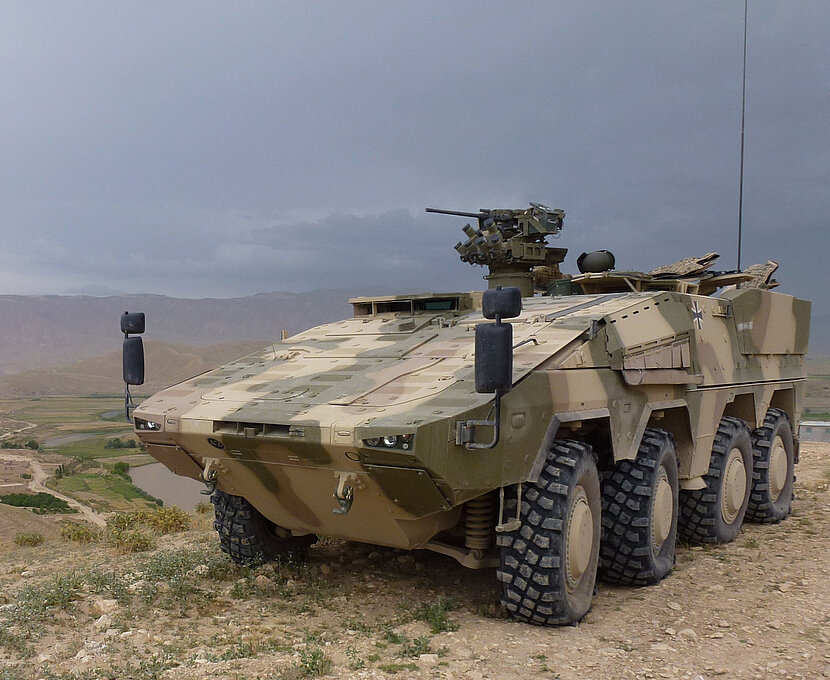

BOXER Armoured Personnel Carrier (APC) with its diverse capabilities and growth potential is the leading armoured 8x8 combat vehicle for future emerging military roles and missions of the infantry.

Download Brochure
ARTEC-Armoured-Personnel-Carrier-02
ARTEC-Armoured-Personnel-Carrier-03
ARTEC-Armoured-Personnel-Carrier-04
ARTEC-Armoured-Personnel-Carrier-05
ARTEC-Armoured-Personnel-Carrier-06
ARTEC-Armoured-Personnel-Carrier-07
ARTEC-Armoured-Personnel-Carrier-08
armoured-personnel-carrier-slider-1
armoured-personnel-carrier-slider-2
Safety for the Personnel

The leading armoured 8x8 combat vehicle for future emerging military roles

The highest level of mobility and protection are the prerequisites for enforcement in high-intensity conflicts and ensure flexibility to future military requirements and scenarios.

Equipped with the latest C4I architecture, the vehicle can be fully integrated into the existing BMS. BOXER APC supports leading edge communication systems including the IdZ (infantry soldier of the future). It supplies the crew with navigational and tactical information in modern battlefield scenarios to ensure real time information. BOXER APC can transport up to 8 dismounts, besides driver, commander and gunner.

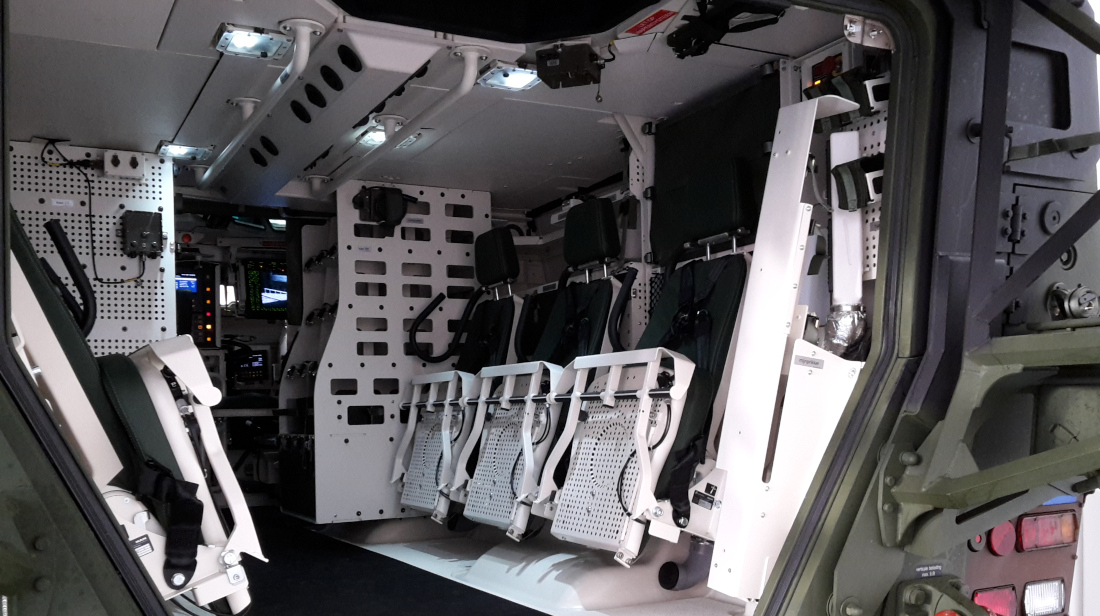

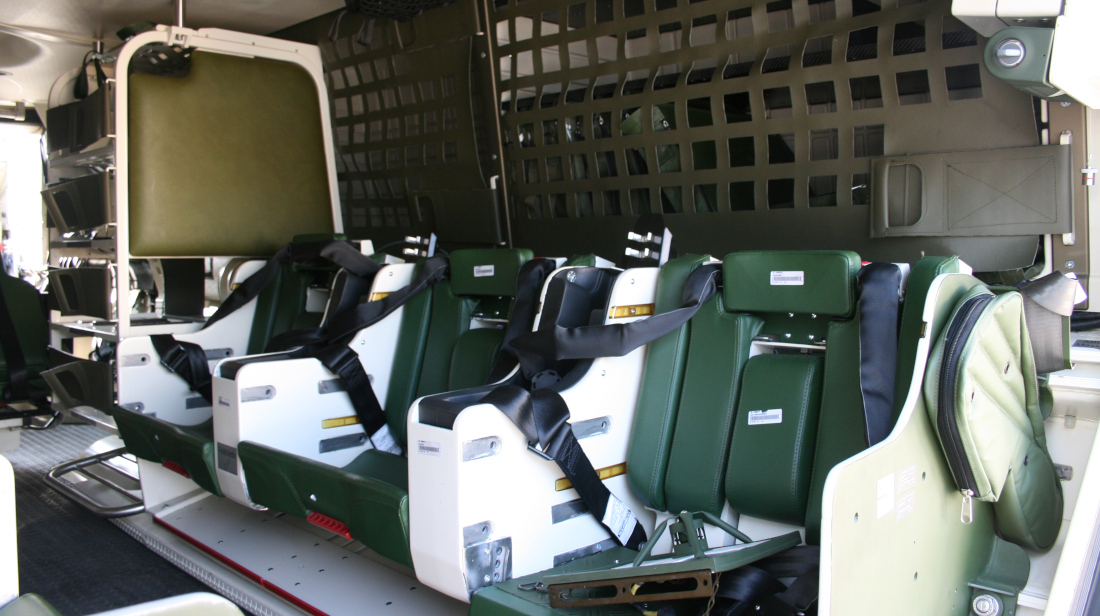

Customisable stowage options and a modular seat configuration with sufficient space to hold a fully equipped infantry squad in the highly protected Mission Module allowing for increased survivability, interoperability and resilience of the crew.

In addition to high flexibility and mobility the combat proven BOXER APC provides its crew with extraordinary survivability and superior protection against mines (AT, AP), IEDs, highest ballistic threats (incl. artillery fragments), NBC threats and detection (radar, noise, solar loading).

Product data of Armoured Personnel Carrier

Key figures

Maximum speed> 100 km/h
Engine capacity (ISO)up to 600 kW (816 hp)
Engine typeMTU V8 199TE20/21
Range> 1,000 km
Electrical system24 V DC, up to 540 A
Max. gross vehicle weightup to 38.5 t
Max. straight gradient60 %
Max. slope gradient30 %
Trench crossing2.00m
Step climbing ability0.80 m
Turning radius7.50 m (skid steering)
Length7.93m
Width2.99 m
Height (hull roof)2.38 m
Ground clearance0.50 m
Protected volume14 m3

Characteristics

Crew: 3 + 8 (driver, commander, gunner, up to 8 dismounts)
Air conditioning and NBC-protection system
Fire extinguishing system in engine compartment and fire suppression system in crew compartment
Up to 5 hatches for „show of force“
Rear view camera

Exemplary Options

Remote Controlled Weapon Station with Smoke- Grenade Launcher and Anti-Tank Guided Missile
Modular protection kits (ballistic, bomblets, IEDs, mine, RPG)
Active Protection System
360° Situational Awareness System
Electronic Countermeasure (ECM)
Laser Warning System
Multispectral Drivers Assistance System for day and night
Crew seats with airbags
