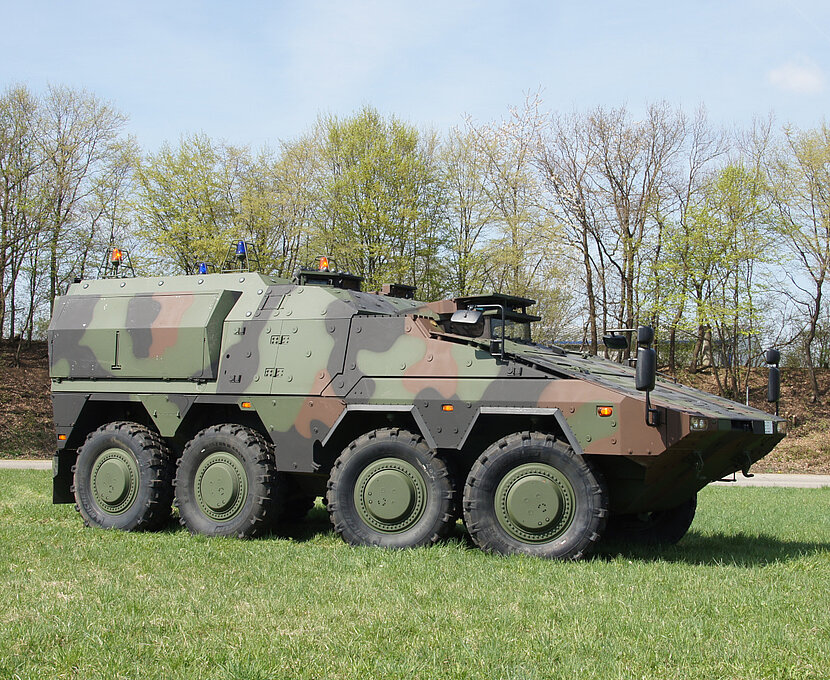

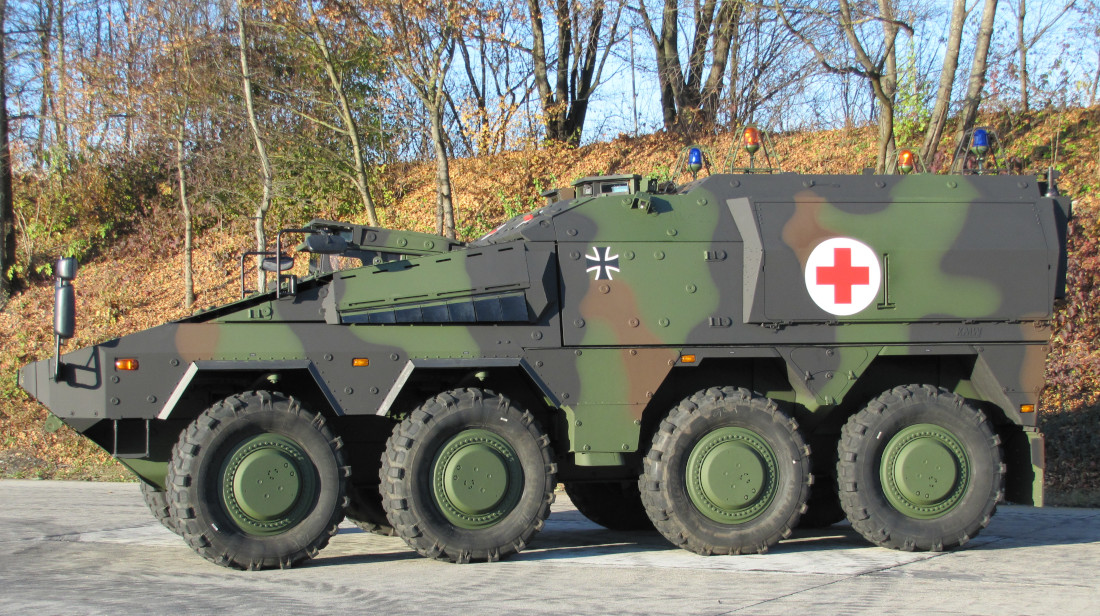

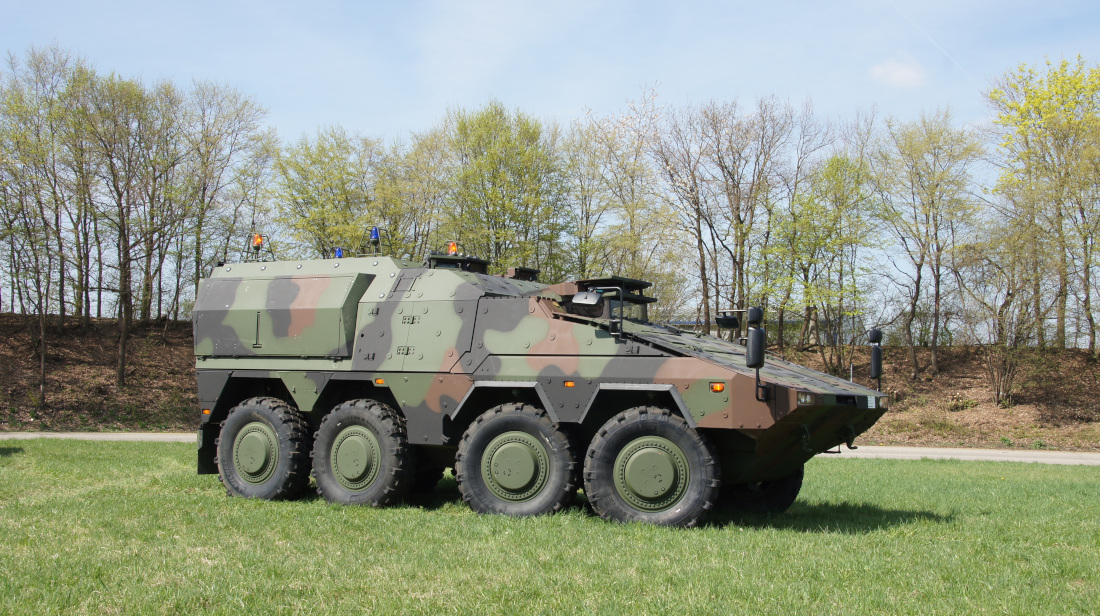

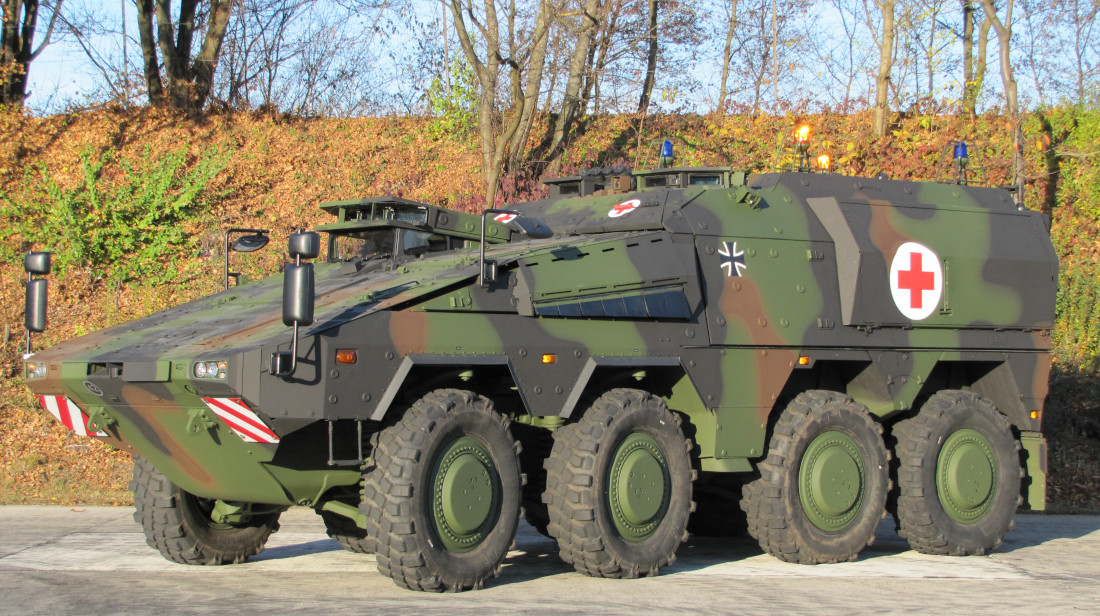

Higher hull and intensive medical treatment within the superior BOXER protection and mobility

BOXER MedTreat

BOXER Ambulance variants provide a wide range of flexibility of the number of casualties able to be carried and dependent on their level of injury. Thanks to its extensive medical equipment, it is possible to provide the right treatment during a mission in most circumstances.

Artec-BOXER-Med-Treat-03
Artec-BOXER-Med-Treat-02
Artec-BOXER-Med-Treat-04
Artec-BOXER-Med-Treat-05
Artec-BOXER-Med-Treat-06
Artec-BOXER-Med-Treat-07
Artec-BOXER-Med-Treat-08
Intensive care under armoured protection

Intensive care capabilites with powered stretcher for flexible number of casualties.

The BOXER MedTreat Ambulance is designed with a higher roof of the Mission Module so that a doctor can stand and treat casualties. It has a crew of three, driver, doctor, who is also the vehicle commander, and a medical officer.

Besides supporting the rapid evacuation of wounded from the battlefield the MedTreat variant has design features and specialist medical equipment that enable intensive medical treatments to be performed.

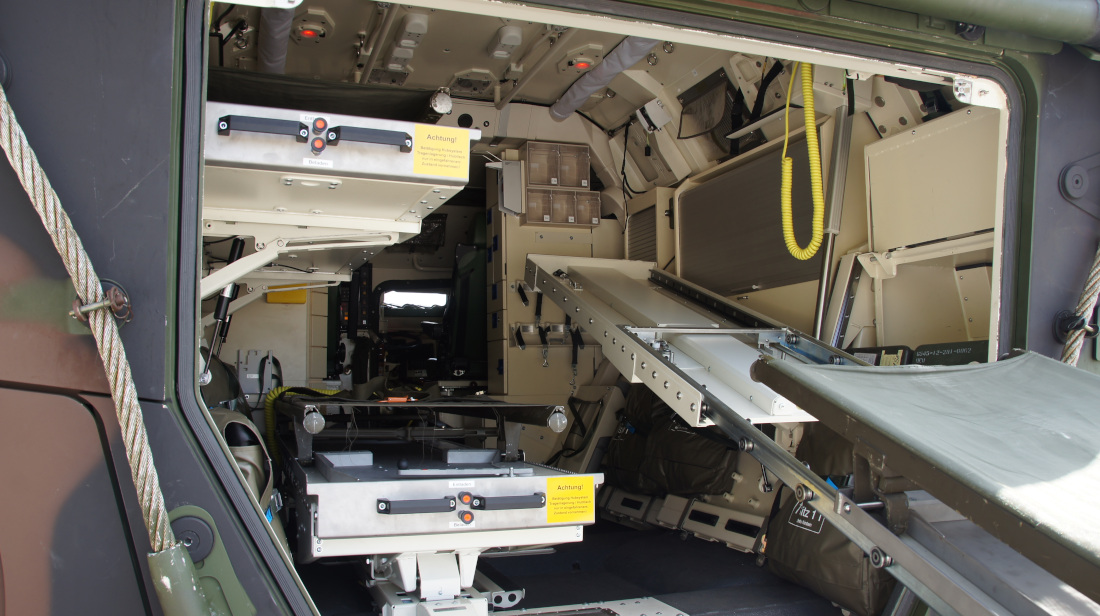

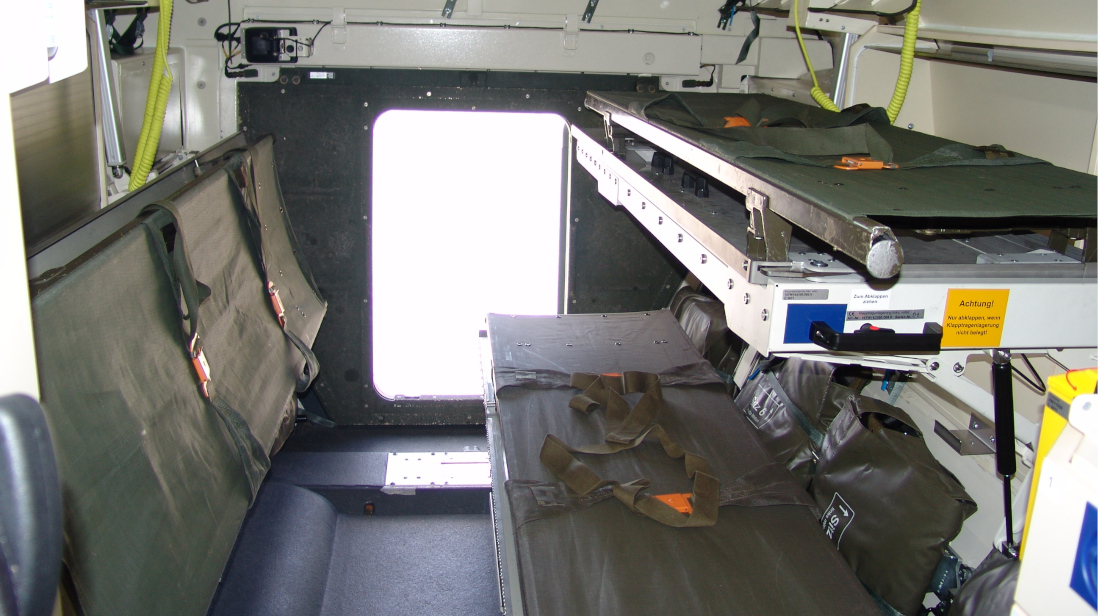

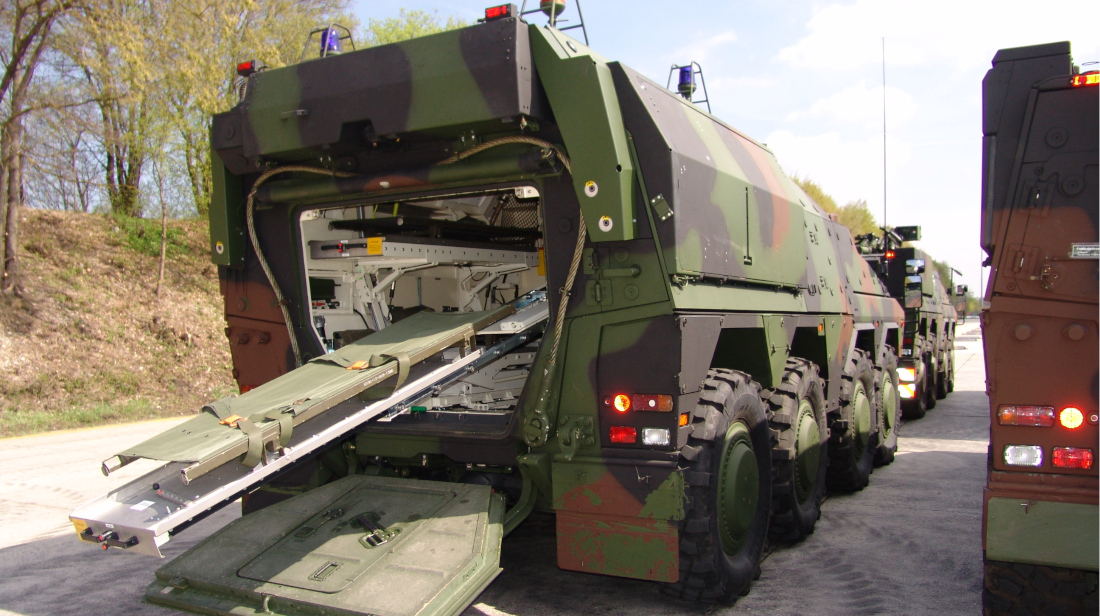

The MedTreat also provides a wide range of flexibility regarding the number of casualties that can be transported and a powered stretcher loading system is provided.

  • 7 seated casualties or,
  • 2 stretcher + 3 seated casualties or,
  • 1 stretcher casualty accessible from both sides and above for intensive medical treatment.

Product data of MedTreat

Key figures

Maximum speed > 100 km/h
Engine capacity (ISO)up to 600 kW (816 hp)
Engine typeMTU V8 199TE20/21
Range> 1,000 km
Electrical system24 V DC, up to 540 A
Max. gross vehicle weight up to 38.5 t
Max. straight gradient60%
Max. slope gradient30%
Trench crossing2.00 m
Step climbing ability0.80 m
Turning radius7.50 m (skid steering)
Length8.31 m
Width2.99 m
Height (hull roof)2.93 m
Ground clearance0.50 m
Protected volume17.5 m3

Characteristics

Crew3 (driver, commander/doctor, medic)
Headroom1.85 m
Capacity7 seated casualties or
2 stretcher + 3 seated casualties or
1 stretcher casualty accessible from both sides and above for intensive medical treatment
Air conditioning and NBC-protection systems
Fire extinguishing system in engine compartment and fire suppression system in crew compartment
Intensive medical treatment and combat first responder equipment

Exemplary Options

Modular protection kits (ballistic, bomblets, IEDs, mine, RPG)
Active Protection System
360° Situational Awareness System
Electronic Countermeasure (ECM)
Remote Controlled Weapon Station for self defence
Laser Warning System
Optronic sight system for commander to avoid opening of hatch
Multispectral Drivers Assistance System for day and night
Optronic sight system with thermal imager and further daylight cameras for the commander
